Please select desired stroke below shock model
Spring sold separately, click to find yours!

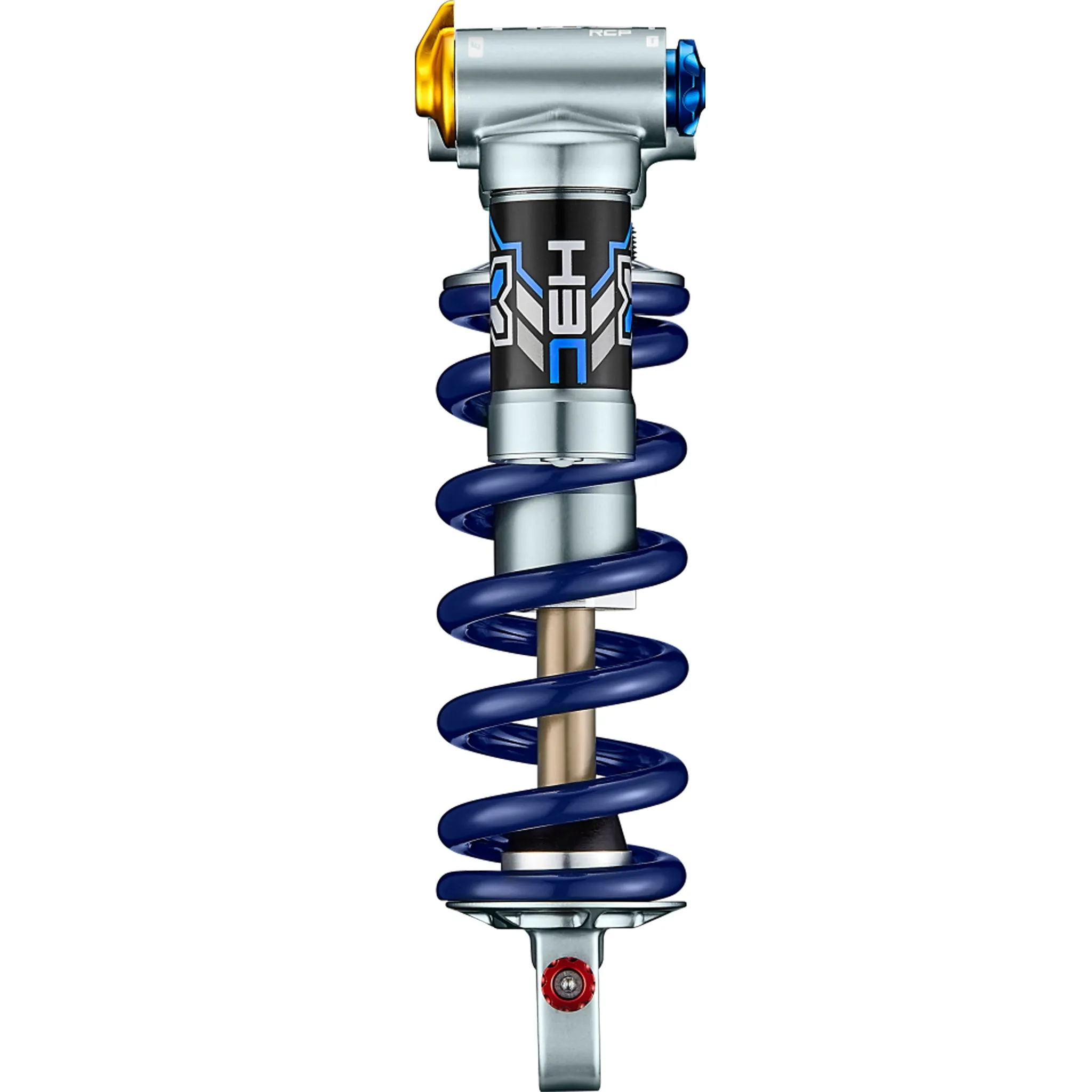

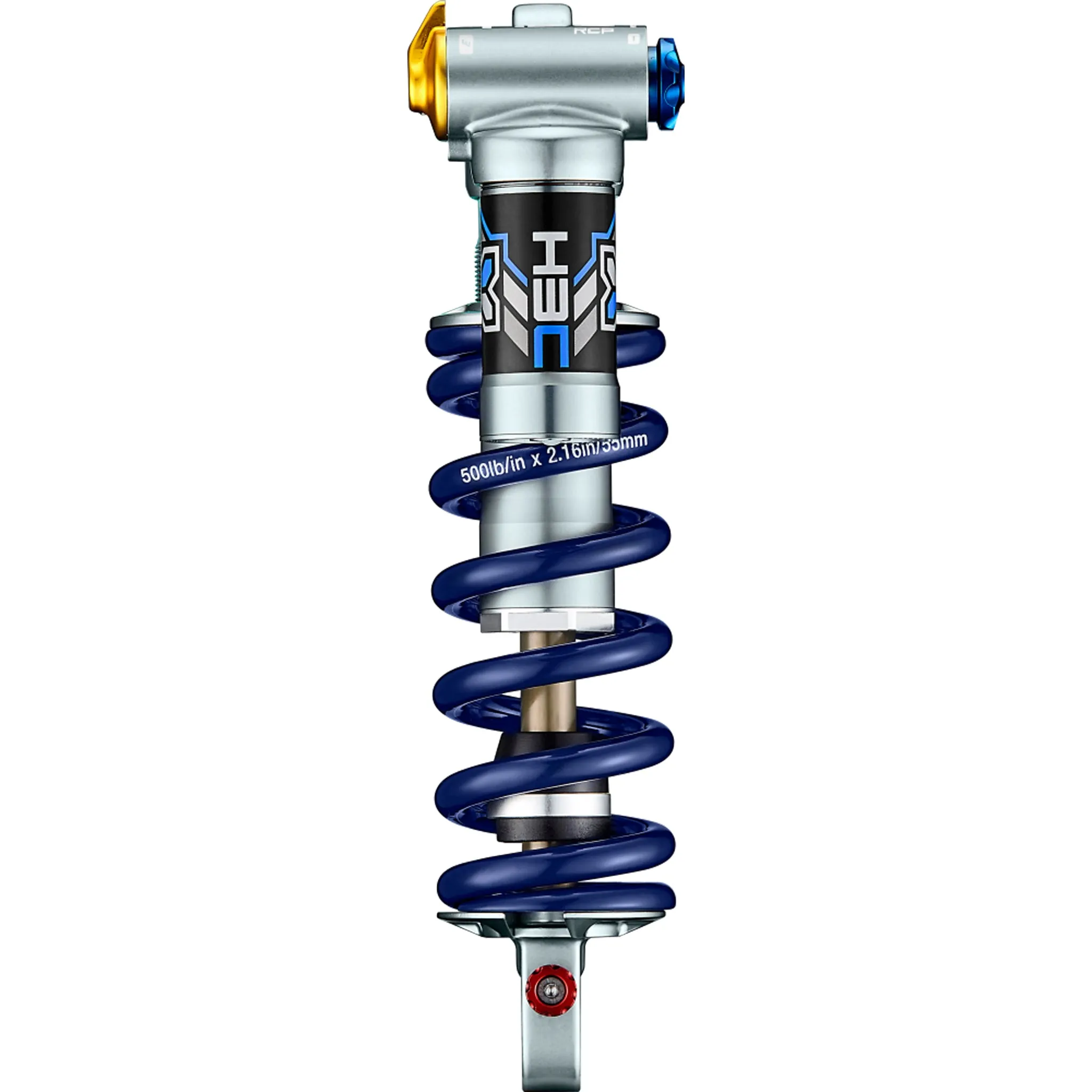

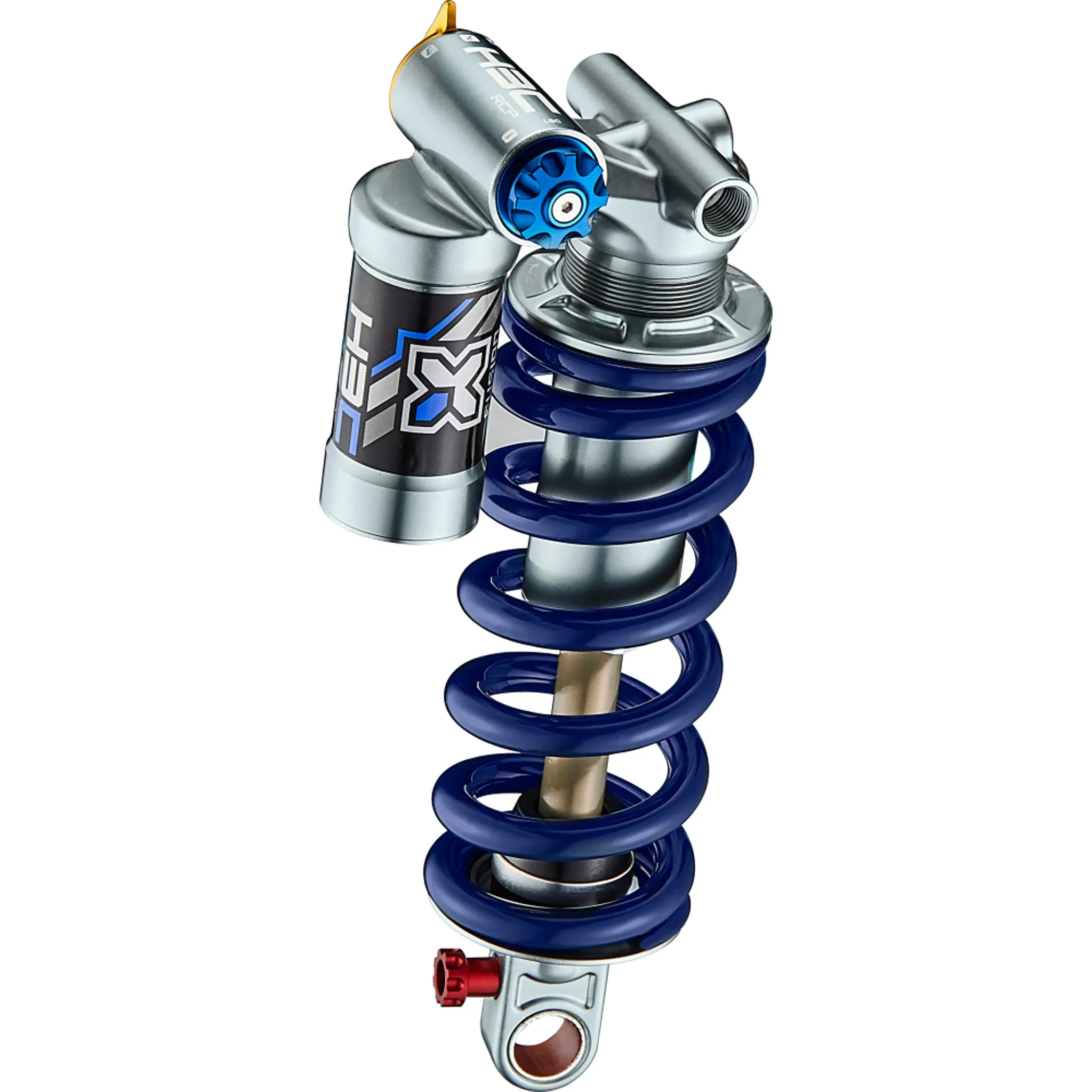

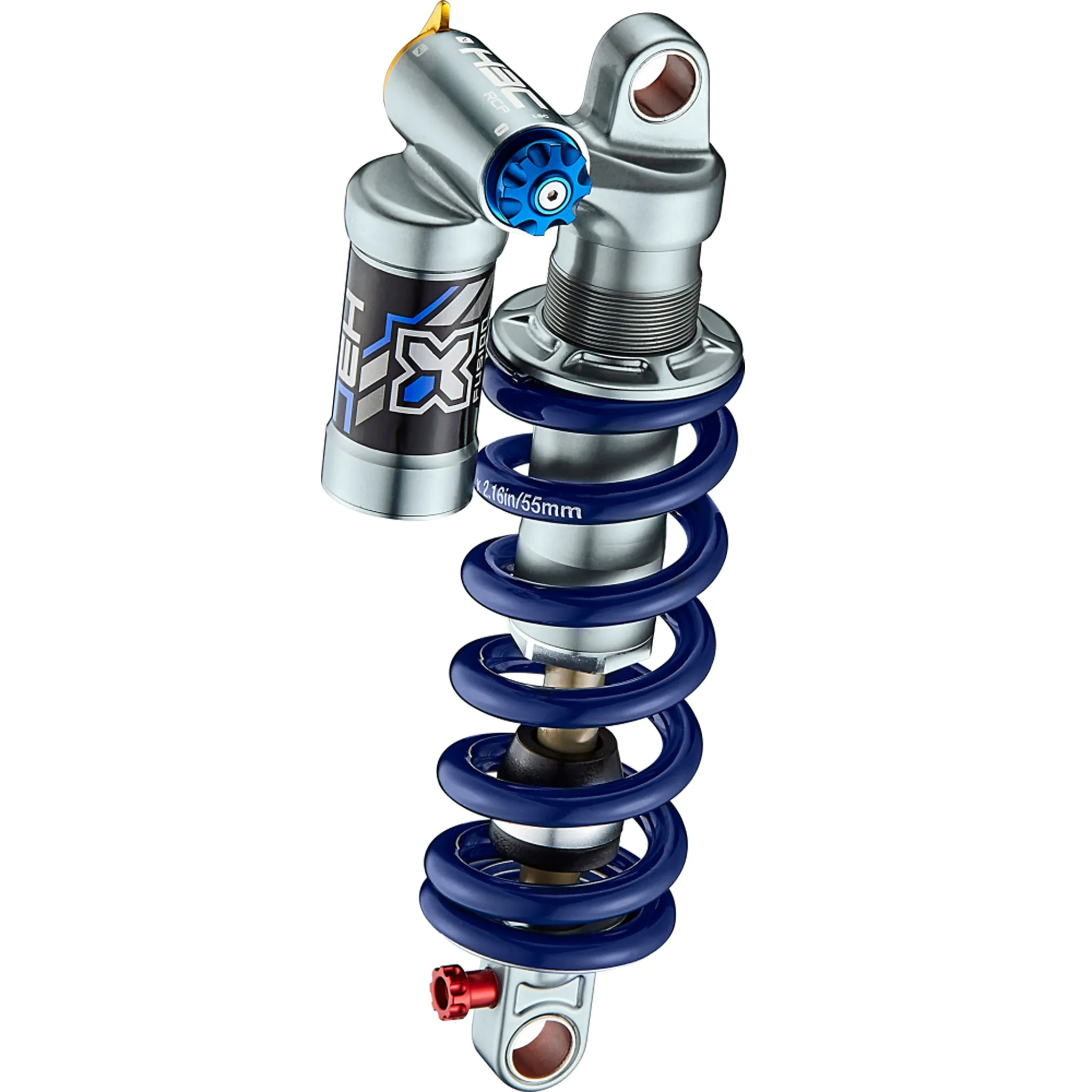

The H3C is X-Fusions lightweight coil shock aimed for all mountain and enduro riding. With a three position platform, rebound and low speed compression adjustment this shock is ready to take what you can throw its way!
FEATURES
- Metric & Trunnion Mount
- Three Position Platform with Complimentary Low Speed Adjustment
- Lightweight Proprietary Metallurgy Spring
SPECIFICATIONS
- Length: 185/55(50), 205/65(60), 210/55(50), 230/65(60)mm
- Weight: 700 grams with spring
- Spring: Light Weight Coil(35mm ID)
- Adjustments: Rebound, Three Position Platform, Low Speed Compression
WARNING
- Some strut-mount" or "yoke-equipped" not allow to use H3C or Vector Coil rear shock
- DO NOT exceed the shock stroke or strut lengths(listed in the table below).
Shock Stroke Max Strut Length
40mm-45mm 118mm
50mm-55mm 98mm
60mm-65mm 72mm
70mm-75mm 37mm
