Item Description
UV sensor for monitoring of air and surface UV disinfection systems

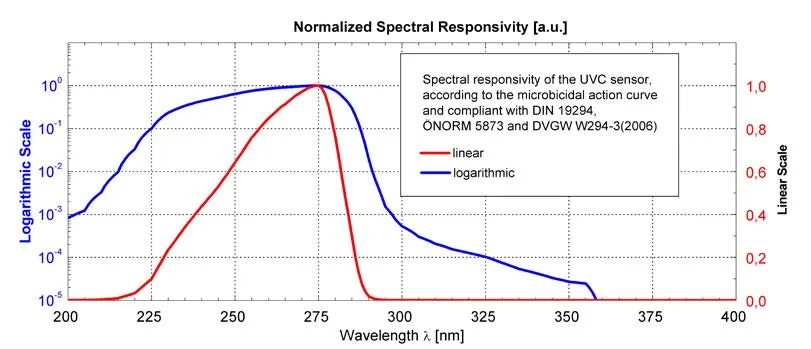

The "UV-Sanitize" is a UV sensor with PTFE housing for monitoring of air and surface UV disinfection systems. An M20x1.5 male thread allows an easy assembly. It is available for monitoring of Hg low pressure lamps, 222nm excimer lamps or xenon flash lamps. It will be configured upon individual customer’s requirements. The sensor works with a SiC photodiode with a UVC filter according to the germicidal action spectrum as defined by DIN 19294-1:2020.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821
| Spectral response | UVC (germicidal) as as defined by DIN 19294-1:2020 |
| Measurement range | 3-4 orders of magnitude |
| Output Options | 0-5 or 10 V, 4-20 mA, USB, CAN bus, |
