Smart card reader functionality and advanced Live Finger Detection technology enhances security makes BioMini Combo a secure platform for developers.

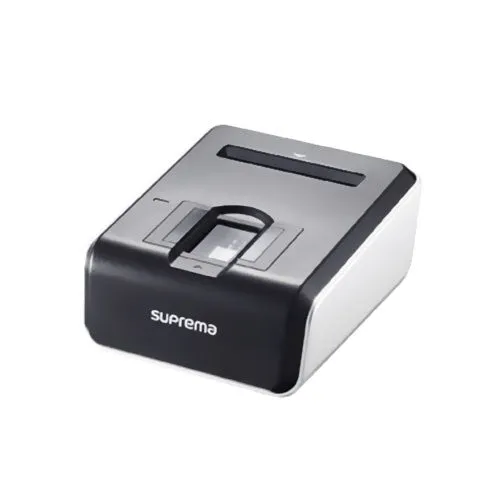

Suprema BioMini Combo Contact Smart Card
Specification
| Main | Sensor Type | Optical |
| Resolution | 500dpi / 256 gray | |
| Platen Size | 18.0 x 25.4 mm (0.71” X 1.0”) | |
| Sensing Area | 17.0 x 25.0 mm (0.67” X 0.99”) | |
| Image Size | 320 x 480 pixels | |
| Compression Standards | WSQ | |
| Template Format | Suprema, ISO19794-2, ANSI-378 | |
| Image Format | ISO19794-4 | |
| Contact Card Support | Contact Smart Card Reader | ISO 7816 Class A/B/C (5V, 3.0V, 1.8V) T=0, T=1 EMV2000 contact smart card with SAM Slot(optional, max 2x SAM) |
| Contactless Card Support | Contactless Smart Card Reader | ISO/IEC 14443 A&B, Mifare, Felica NFC Forum tag types (Jewel, Mifare Ultralight, Felica, Felica lite, Mifare, DesFire) EMV2000 Contactless Smart Card Frequency 13.56MHz /- 7KHz Distance transaction: Up to 10cm Baud: 106/212/424/848 kbit/s |
| Interface | USB | 2.0 CCID, PC/SC driver |
| Hardware | Operating Temperature | -10°C ~ 50°C |
| Certification | CE, FCC, KC, UL, WHQL, USB-IF, WEEE | |
| Dimensions | 95.7 x 114.8 x 52.6 mm (W x L x H) | |
| Compatibility | Operating System | Windows Linux |
