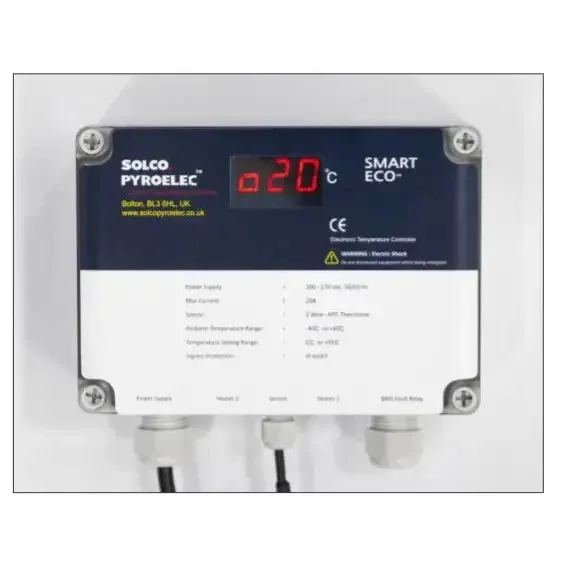

Smart-ECO Temperature Controller is an air/surface sensing programmable thermostat with a Building Management System (BMS) fault alarm relay. This product is designed for electronic temperature control in commercial heating applications. The Smart-ECO v.03 is equipped with a variety of features, including the ability to control all SOLCO PYROELEC heating cables, a user-friendly interface for easy programming, and a display that alternates between the live temperature reading and the set temperature.

Key Details

• Advanced trace heating solution
• Air/surface sensing programmable thermostat
• Compatible with all SOLCO PYROELEC heating cables
• User-friendly interface for programming
• Display showing live and set temperatures
• Building Management System (BMS) fault alarm relay
• Designed for electronic temperature control in commercial settings

Additional Details

• Thermostat Control Relay: 20A
• BMS Fault Alarm Relay: 3A SPST
• Mounting Option: Can be mounted on a pipe using a SOLCO PYROELEC support bracket
• Temperature Setting Range: -15°C to 100°C
• Supply Voltage: 100Vac (min) – 270Vac (max), 50/60 Hz
• Load Current: Maximum 20A
• Enclosure Dimensions: 125mm x 175mm x 75mm, IP66/67 ingress protection
• Temperature Sensor: NTC 10kohm, PVC cable, maximum exposure temperature for sensor (metal part) 200°C, PVC cable 100°C
• Sensor Wire Length: 3 meters, extendable up to 100 meters
• Programmable Parameters: Temperature setting, hysteresis, heater operation error handling
• Diagnosed Alarms: Includes alarms for power loss, high/low temperature limits, sensor issues, load relay error, and comms cable break
