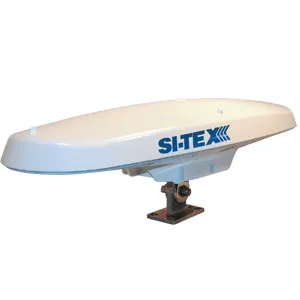

Si-tex Vector Pro G2 GPS Compass
Model: VECTOR PRO G2- The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation
- The half-meter length smart antenna mounts easily to a flat surface or pole
- The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost
- IMO Wheelmarked for Commercial applications
Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.
Specifications| GPS SENSOR SPECIFICATION | |
| Receiver Type | Twin Receivers w/ L1, C/A code, with carrier phase smoothing |
| Channels | Two 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS) |
| Update Rate | Standard 20 Hz Adjustable (position and heading) |
| Horizontal Accuracy | < 0.6 m 95% confidence (* < 2.5m 95% confidence (aiutonomous, no SA)** |
| Heading accuracy | <0.3° rms |
| Pitch/roll accuracy | < 1° rms |
| Rate of turn | 90°/s max |
| Start up time | < 60s typical |
| Heading fix | < 20s |
| Satellite reacquisition | < 1s |
| Beacon Sensor Specifications (G2B version) | |
| Channels | 2-channel parallel tracking |
| Frequency range | 283.5 to 325 kHz |
| Operating modes | Automatic (signal strength or range) and manual |
| Compliance | IEC 611 08-4 beacon standard |
| Communications | |
| Srial ports | 2 full duplex RS-232 and 2 half duplex RS-422 |
| Data I/O protocol | NMEA 0183 |
| Enviromental | |
| Operating temperature rage | -30°C to 70°C |
| Humidity | 100% non condensing |
| Input voltage | 9-36vDC |
| Power consumption | <5w |
| Isolation | Power supply isolated fromserial ports |
| Mechanical | |
| Dimensions | 23.6" x 6.3" x 7.1" |
