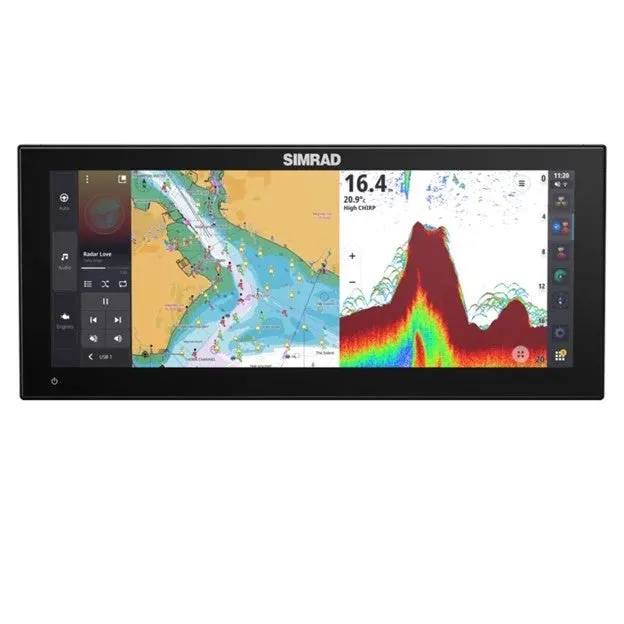

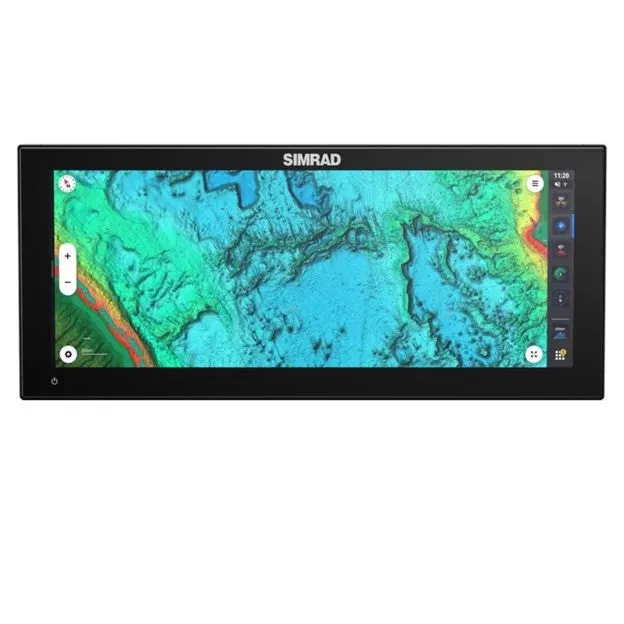

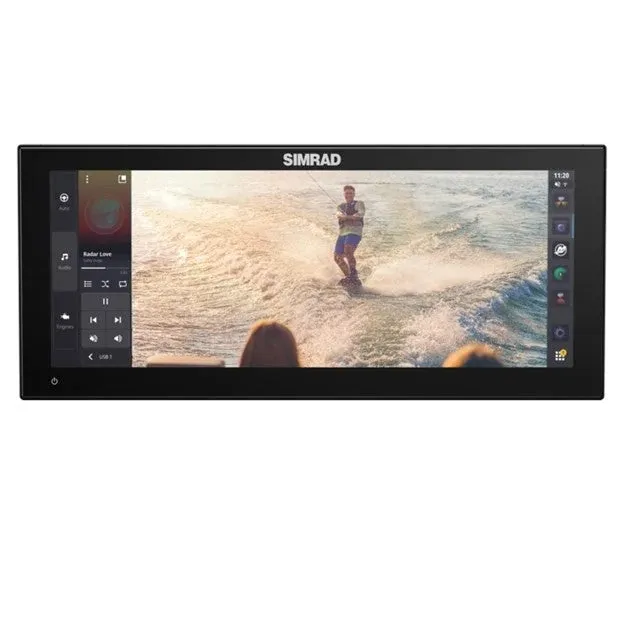

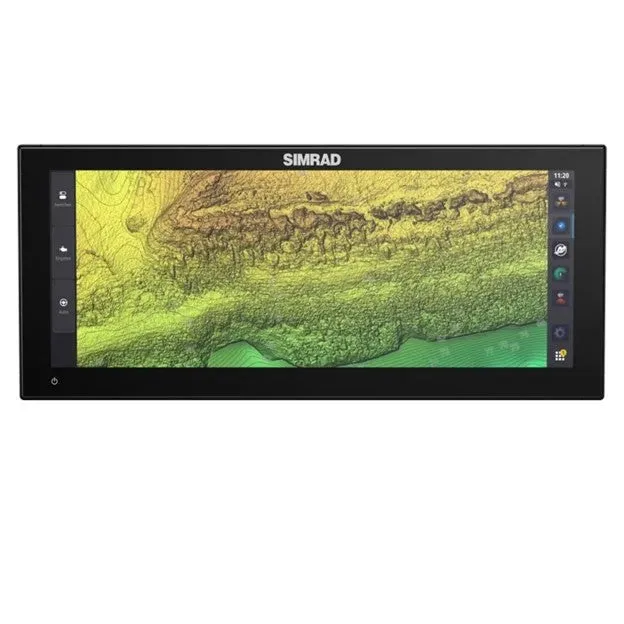

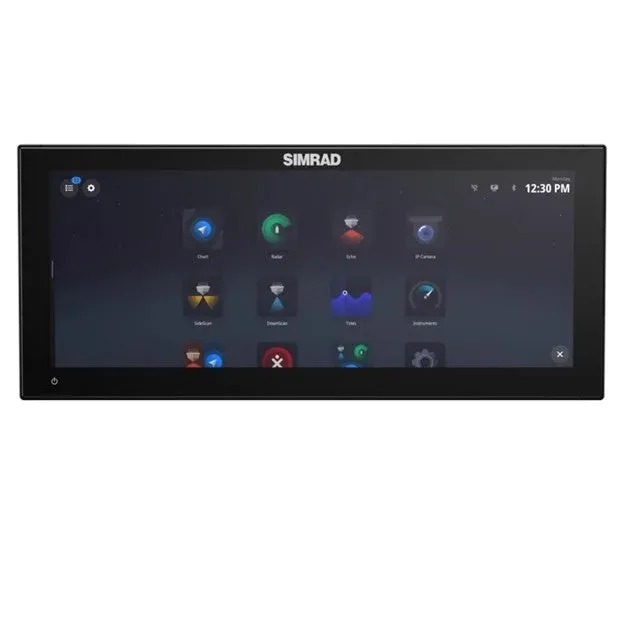

Simrad NSX Ultrawide 3015

Discover a new level of navigation with the Simrad NSX Ultrawide 3015. This first-of-its-kind marine display offers a fully-featured ultrawide design, combining the benefits of dual screens into one immersive experience. Expand your horizons and elevate your boating experience with the NSX Ultrawide.

Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP's X-Gen charts in more detail than ever.

Welcome to the future of marine displays. Why settle for anything less?

Get a fresh perspective
NSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for the most immersive on-the-water experience yet.

Simpler boating with our latest operating system
NSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activities bar to pin your favourite apps and switch between them with a single touch. And the fully customizable instruments panel lets you make NSX your own, ensuring you always have the right data at hand, and nothing more.

The simplified interface means you’ll spend less time navigating menus, and more time navigating waters. And that’s quicker, too – with our fastest-ever auto-routing calculating routes in one third of the time.

Superior engine control
Connectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.

It all begins with superior engine control. Nobody integrates better with Mercury than we do, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.

Bow-to-stern integration
Control with NSX ULTRAWIDE extends across the entire vessel, with support for CZone digital switching, RGBW lighting, IP cameras and audio – with an intuitive Setup Wizard to help you get it all connected.

Your fishing superpower
Anglers benefit from leading sonar tech like FishReveal and Active Imaging, providing high-res images 300 feet to the sides and below your boat. And compatibility with a wide range of 1kW transducers means you can fish even the deepest waters.

Key Features
Simrad suite integration

See near and far with full support for 3G, 4G and HALO radars
Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots
Simrad App integration for Waypoint management and offline trip planning
Third party integration

Best-in-class Mercury Integration, inc. SmartCraft Connect
Integration with leading propulsion brands such as Honda and Suzuki
CZone digital switching
OmniSense
Dometic
Lumishore lighting
Multiple audio partners
IP cameras
HTML5 app compatible
Much, much more...

Charts and Navigation

Optimized for C-MAP DISCOVER X AND REVEAL X charts
X-Chart Manager
3x faster autorouting*
*vs SIMRAD® GO

Fishfinding & Sonar Capabilities

Sonar sharing between NSX® devices
Compatible with Active Imaging, featuring CHIRP, SideScan, and DownScan Imaging, as well as the S3100 & S5100 sonar modules*
*Requires minimum 1.7 software update

Network Connectivity

Wireless
Ethernet
USB
NMEA 2000
Additional Features

The latest Simrad operating system, for game-changing ease of use
Ultrawide SolarMAX IPS HD touchscreen with extreme viewing angles
Intuitive setup wizard
Bracket mount sold separately

Display
Backlight Colour: White
Display Resolution: 1920 x 720px
Screen Brightness: >1000 nits
Viewing Angles: 85° (top, bottom, left, and right)
Physical
Compass Safe: 50 cm (1.7 ft)
Dimensions W x H x D, No Bracket, no suncover:  W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80")
Mounting Type: Rear mount (bracket supplied), Bracket mount (bracket optional)
Weight: 1.9 kg (4.2 lbs)
