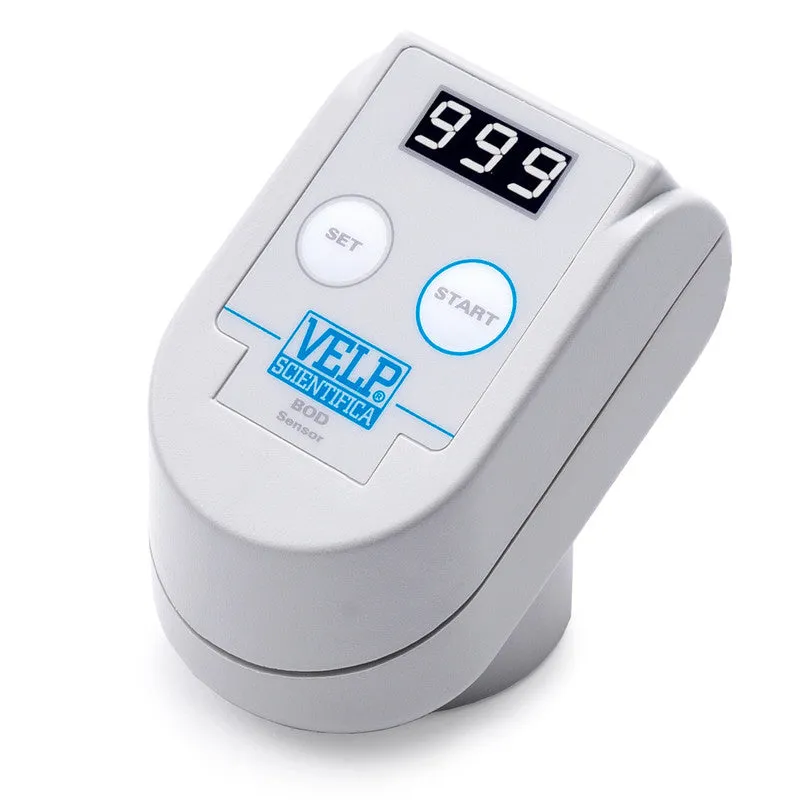

BOD Determination made easy BOD (Biochemical Oxygen Demand) Determination is a simple and easy way for monitoring the microorganisms’ activity in water samples with extremely reliable results.
In particular, microorganisms present or inoculated in a water sample containing biodegradable organic substance, consume oxygen for their metabolic activity and produce a corresponding volume of carbon dioxide.
The carbon dioxide get absorbed by a strong alkali positioned in the neck of the bottle. The result of this process is a decrease in gas pressure. The BOD measure this change in gas pressure between the beginning to the end of the analysis and give a result expressed in mg/l .
Specifications
| Number of sensors including: | 10 |
| Bod measurement: | mg/l (ppm) directly on the display |
| Bod Scales | 90, 250, 600, 999, 4000 ppm, Higher values after dilution |
| Data storage | BOD values at 24h intervals |
| Power | 2 W |
| Power Supply | Sensors: 2x3V lithium batteries Stirring Station: 230V / 50-60Hz or 115V / 60Hz |
| Weight | 3 Kg (6.6 lb) |
| Sensor protection degree | IP 54-EN 60529 |
| Sensor Display | 3-digit LED display |
| Test typology | BOD |
| Bottle volumes | 500 ml |
| Sensor construction material | Technopolymer |
| Sensor battery type | CR 2430 |
| Dimensions | (17.0x11.8x6.5 in) |
