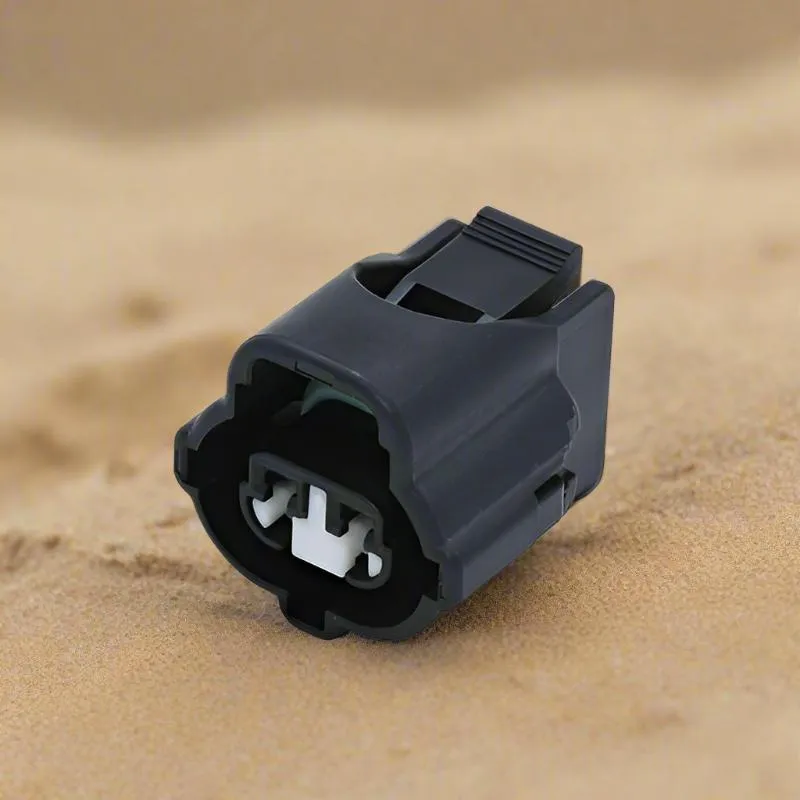

Air Temperature Sensor Connector Kit - Toyota

Black 2 way sealed female connector kit complete with terminals and seals suits Toyota IAT Air temperature sensors.

Jay-Dee Part #: TATS2K

Pack Qty: 1 (1 x Connector, 2 x Terminal, 2 x Seal)

Brand: Jay-Dee

Material: Housing:PBT G,PA66 GF;Terminal:Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 24.55mm

Width: 22.60mm

Height: 21.40mm

Spare Terminals: AUDPT

Applications:

Toyota JZX81 1JZGTE Air Temperature Sensor

Toyota JZX90 1JZGTE Air Temperature Sensor

Toyota JZX100 1JZGTE Air Temperature Sensor

Toyota JZX110 1JZGTE Air Temperature Sensor

Toyota JZZ30/31 1JZGTE Air Temperature Sensor

Toyota JZA80 2JZGTE Air Temperature Sensor

Toyota JZZ30 2JZGTE Air Temperature Sensor

Toyota JZZ31 2JZGTE Air Temperature Sensor

Toyota 2JZ IAT VVTi Air Temperature Sensor

Recommended Crimping Tools:

IWS-1424AB
